Details
It was only a matter of time until we created the fattest Quad of them all, the Fat Quad! This fat BMX bike is centered around the unique Quadangle frame design, featuring an oversized downtube, integrated head tube, and a legendary looptail rear end. New this year is an upgrade to Tektro Auriga hydraulic disc brakes. Once you go fat, you never go back...
- 6061 aluminum Quadangle frame design, internally-machined integrated head tube, symmetrical looptail rear end, 100mm bottom bracket, and 170mm-spaced rear dropouts
- Full Cr-Mo Landing Gear forks with 135mm-spaced dropouts
- Vee Tire Co x SE Racing Chicane, 26" x 3.50" tires run fast and smooth at 30psi
- Oakley B1-B grips with SE donuts
- SE Flyer seat with bottle opener
- Cr-Mo SE Big Honkin' cruiser bars
- External bottom bracket
- Tektro Auriga hydraulic disc brakes featuring dual piston design, automatic caliper positioning system, 160mm rear rotor, and 180mm front rotor
- SE 3-piece V-Ridge cranks with alloy SE sprocket
- 35.8 pounds

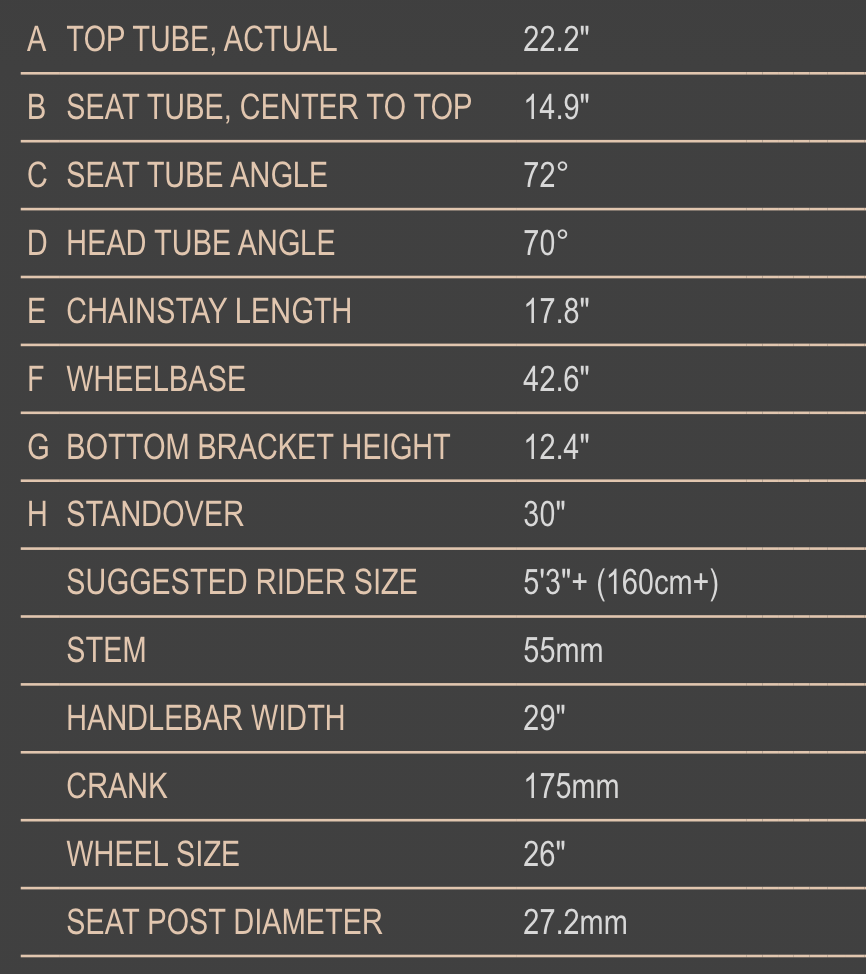

Specs
Frame | 6061 Aluminum, Single Downtube Fat Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 100mm Euro Bottom Bracket, 170mm Spaced Dropouts, Disc Brake Tabs |
---|---|
Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 135mm Spaced Dropouts |
Wheels | Alloy 36H Hubs, Sealed Rear, 135mm Front Hub & 170mm Rear Hub, w/ SE Bubble Fat 65mm Rims, 14T Cassette, Stainless Spokes |
Tires | Vee Tire Co x SE Racing Chicane, 26" x 3.5", 72TPI, Front & Rear, |
Crankset | SE V-Ridge 3-pc Cr-Mo Cranks,175mm, External Sealed Bearing Euro Bottom Bracket, 200mm Spindle length, 19mm Spindle Diameter, 27T Alloy SE Racing Sprocket |
Chain | KMC S1 |
Brakes | Tektro Auriga, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
Brake Levers | Tektro Auriga, 2-Finger Alloy, Front & Rear |
Handlebars | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
Tape/Grips | Special Edition ODI Mushroom II Grips, Made in USA, w/ SE Donuts |
Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
Seatpost | Micro-Adjust Alloy, 27.2mm |
Saddle | SE Flyer Seat w/ Custom SE Bottle Opener Brace |
Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
Accessories & Extras | Alloy Valve Caps, SE Chain Tensioners |
* Subject to change without notice.
